Air-gapped Installation on Kubernetes

The air-gapped installation is almost the same as the online installation except that you must create a local registry to host Docker images. This tutorial demonstrates how to install Kube AI Hub on Kubernetes in an air-gapped environment.

Before you follow the steps below, read Prerequisites first.

Step 1: Prepare a Private Image Registry

You can use Harbor or any other private image registries. This tutorial uses Docker registry as an example with self-signed certificates (If you have your own private image registry, you can skip this step).

Use self-signed certificates

Generate your own certificate by executing the following commands:

mkdir -p certs

openssl req \
-newkey rsa:4096 -nodes -sha256 -keyout certs/domain.key \
-x509 -days 36500 -out certs/domain.crt

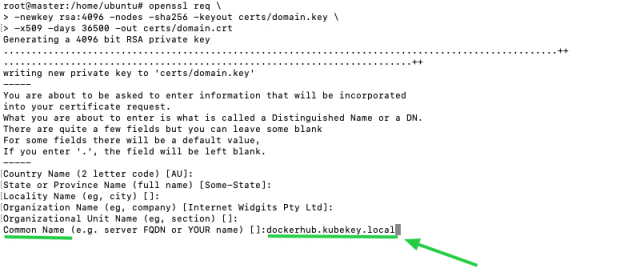

Make sure you specify a domain name in the field Common Name when you are generating your own certificate. For instance, the field is set to dockerhub.kubekey.local in this example.

Start the Docker registry

Run the following commands to start the Docker registry:

docker run -d \
  --restart=always \
  --name registry \
  -v "$(pwd)"/certs:/certs \
  -v /mnt/registry:/var/lib/registry \
  -e REGISTRY_HTTP_ADDR=0.0.0.0:443 \
  -e REGISTRY_HTTP_TLS_CERTIFICATE=/certs/domain.crt \
  -e REGISTRY_HTTP_TLS_KEY=/certs/domain.key \
  -p 443:443 \
  registry:2

Note

Docker uses /var/lib/docker as the default directory where all Docker related files, including images, are stored. It is recommended you add additional storage volumes with at least 100G mounted to /var/lib/docker and /mnt/registry respectively. See fdisk command for reference.

Configure the registry

Add an entry to /etc/hosts to map the hostname (i.e. the registry domain name; in this case, it is dockerhub.kubekey.local) to the private IP address of your machine as below.
```
# docker registry
192.168.0.2 dockerhub.kubekey.local
```
Execute the following commands to copy the certificate to a specified directory and make Docker trust it.
```
mkdir -p  /etc/docker/certs.d/dockerhub.kubekey.local
```
```
cp certs/domain.crt  /etc/docker/certs.d/dockerhub.kubekey.local/ca.crt
```
Note

The path of the certificate is related to the domain name. When you copy the path, use your actual domain name if it is different from the one set above.
To verify whether the private registry is effective, you can copy an image to your local machine first, and use docker push and docker pull to test it.

Step 2: Prepare Installation Images

As you install Kube AI Hub in an air-gapped environment, you need to prepare an image package containing all the necessary images in advance.

Download the image list file images-list.txt from a machine that has access to the Internet through the following command:
```
curl -L -O https://github.com/kubesphere/ks-installer/releases/download/v3.4.1/images-list.txt
```
Note

This file lists images under ##+modulename based on different modules. You can add your own images to this file following the same rule. To view the complete file, see Appendix.

Download offline-installation-tool.sh.

curl -L -O https://github.com/kubesphere/ks-installer/releases/download/v3.4.1/offline-installation-tool.sh

Make the .sh file executable.
```
chmod +x offline-installation-tool.sh
```

You can execute the command ./offline-installation-tool.sh -h to see how to use the script:

root@master:/home/ubuntu# ./offline-installation-tool.sh -h
Usage:

  ./offline-installation-tool.sh [-l IMAGES-LIST] [-d IMAGES-DIR] [-r PRIVATE-REGISTRY] [-v KUBERNETES-VERSION ]

Description:
  -b                     : save kubernetes' binaries.
  -d IMAGES-DIR          : the dir of files (tar.gz) which generated by `docker save`. default: ./kubesphere-images
  -l IMAGES-LIST         : text file with list of images.
  -r PRIVATE-REGISTRY    : target private registry:port.
  -s                     : save model will be applied. Pull the images in the IMAGES-LIST and save images as a tar.gz file.
  -v KUBERNETES-VERSION  : download kubernetes' binaries. default: v1.22.12
  -h                     : usage message

Pull images in offline-installation-tool.sh.
```
./offline-installation-tool.sh -s -l images-list.txt -d ./kubesphere-images
```
Note

You can choose to pull images as needed. For example, you can delete ##k8s-images and related images under it in images-list.text as you already have a Kubernetes cluster.

Step 3: Push Images to Your Private Registry

Transfer your packaged image file to your local machine and execute the following command to push it to the registry.

./offline-installation-tool.sh -l images-list.txt -d ./kubesphere-images -r dockerhub.kubekey.local

Note

The domain name is dockerhub.kubekey.local in the command. Make sure you use your own registry address.

Step 4: Download Deployment Files

Similar to installing Kube AI Hub on an existing Kubernetes cluster in an online environment, you also need to download cluster-configuration.yaml and kubesphere-installer.yaml first.

Execute the following commands to download these two files and transfer them to your machine that serves as the taskbox for installation.

curl -L -O https://github.com/kubesphere/ks-installer/releases/download/v3.4.1/cluster-configuration.yaml
curl -L -O https://github.com/kubesphere/ks-installer/releases/download/v3.4.1/kubesphere-installer.yaml

Edit cluster-configuration.yaml to add your private image registry. For example, dockerhub.kubekey.local is the registry address in this tutorial, then use it as the value of .spec.local_registry as below:
```
spec:
  persistence:
    storageClass: ""
  authentication:
    jwtSecret: ""
  local_registry: dockerhub.kubekey.local # Add this line manually; make sure you use your own registry address.
```
Note

You can enable pluggable components in this YAML file to explore more features of Kube AI Hub. Refer to Enable Pluggle Components for more details.
Save cluster-configuration.yaml after you finish editing. Replace ks-installer with your own registry address with the following command:
```
sed -i "s#^\s*image: kubesphere.*/ks-installer:.*#        image: dockerhub.kubekey.local/kubesphere/ks-installer:v3.4.1#" kubesphere-installer.yaml
```
Warning

dockerhub.kubekey.local is the registry address in the command. Make sure you use your own registry address.

Step 5: Start Installation

Execute the following commands after you make sure that all steps above are completed.

kubectl apply -f kubesphere-installer.yaml
kubectl apply -f cluster-configuration.yaml

Step 6: Verify Installation

When the installation finishes, you can see the content as follows:

#####################################################
###              Welcome to Kube AI Hub!           ###
#####################################################

Console: http://192.168.0.2:30880
Account: admin
Password: P@88w0rd

NOTES：
  1. After logging into the console, please check the
     monitoring status of service components in
     the "Cluster Management". If any service is not
     ready, please wait patiently until all components
     are ready.
  2. Please modify the default password after login.

#####################################################
https://kubesphere.io             20xx-xx-xx xx:xx:xx
#####################################################

Now, you will be able to access the web console of Kube AI Hub through http://{IP}:30880 with the default account and password admin/P@88w0rd.

Note

To access the console, make sure port 30880 is opened in your security group.

After the sign-in page opens, log in with the default credentials and verify that the console home page and system components load normally.

Appendix

Image list of Kube AI Hub 3.4

##kubesphere-images
kubesphere/ks-installer:v3.4.1
kubesphere/ks-apiserver:v3.4.1
kubesphere/ks-console:v3.4.1
kubesphere/ks-controller-manager:v3.4.1
kubesphere/kubectl:v1.20.0
kubesphere/kubefed:v0.8.1
kubesphere/tower:v0.2.1
minio/minio:RELEASE.2019-08-07T01-59-21Z
minio/mc:RELEASE.2019-08-07T23-14-43Z
csiplugin/snapshot-controller:v4.0.0
kubesphere/nginx-ingress-controller:v1.3.1
mirrorgooglecontainers/defaultbackend-amd64:1.4
kubesphere/metrics-server:v0.4.2
redis:5.0.14-alpine
haproxy:2.0.25-alpine
alpine:3.14
osixia/openldap:1.3.0
kubesphere/netshoot:v1.0
##kubeedge-images
kubeedge/cloudcore:v1.13.0
kubesphere/iptables-manager:v1.13.0
kubesphere/edgeservice:v0.3.0
##gatekeeper-images
openpolicyagent/gatekeeper:v3.5.2
##openpitrix-images
kubesphere/openpitrix-jobs:v3.3.2
##kubesphere-devops-images
kubesphere/devops-apiserver:ks-v3.4.1
kubesphere/devops-controller:ks-v3.4.1
kubesphere/devops-tools:ks-v3.4.1
kubesphere/ks-jenkins:v3.4.0-2.319.3-1
jenkins/inbound-agent:4.10-2
kubesphere/builder-base:v3.2.2
kubesphere/builder-nodejs:v3.2.0
kubesphere/builder-maven:v3.2.0
kubesphere/builder-maven:v3.2.1-jdk11
kubesphere/builder-python:v3.2.0
kubesphere/builder-go:v3.2.0
kubesphere/builder-go:v3.2.2-1.16
kubesphere/builder-go:v3.2.2-1.17
kubesphere/builder-go:v3.2.2-1.18
kubesphere/builder-base:v3.2.2-podman
kubesphere/builder-nodejs:v3.2.0-podman
kubesphere/builder-maven:v3.2.0-podman
kubesphere/builder-maven:v3.2.1-jdk11-podman
kubesphere/builder-python:v3.2.0-podman
kubesphere/builder-go:v3.2.0-podman
kubesphere/builder-go:v3.2.2-1.16-podman
kubesphere/builder-go:v3.2.2-1.17-podman
kubesphere/builder-go:v3.2.2-1.18-podman
kubesphere/s2ioperator:v3.2.1
kubesphere/s2irun:v3.2.0
kubesphere/s2i-binary:v3.2.0
kubesphere/tomcat85-java11-centos7:v3.2.0
kubesphere/tomcat85-java11-runtime:v3.2.0
kubesphere/tomcat85-java8-centos7:v3.2.0
kubesphere/tomcat85-java8-runtime:v3.2.0
kubesphere/java-11-centos7:v3.2.0
kubesphere/java-8-centos7:v3.2.0
kubesphere/java-8-runtime:v3.2.0
kubesphere/java-11-runtime:v3.2.0
kubesphere/nodejs-8-centos7:v3.2.0
kubesphere/nodejs-6-centos7:v3.2.0
kubesphere/nodejs-4-centos7:v3.2.0
kubesphere/python-36-centos7:v3.2.0
kubesphere/python-35-centos7:v3.2.0
kubesphere/python-34-centos7:v3.2.0
kubesphere/python-27-centos7:v3.2.0
quay.io/argoproj/argocd:v2.3.3
quay.io/argoproj/argocd-applicationset:v0.4.1
ghcr.io/dexidp/dex:v2.30.2
redis:6.2.6-alpine
##kubesphere-monitoring-images
jimmidyson/configmap-reload:v0.7.1
prom/prometheus:v2.39.1
kubesphere/prometheus-config-reloader:v0.55.1
kubesphere/prometheus-operator:v0.55.1
kube-ai-hub/kube-rbac-proxy:v0.14.0
kubesphere/kube-state-metrics:v2.6.0
prom/node-exporter:v1.3.1
prom/alertmanager:v0.23.0
thanosio/thanos:v0.31.0
grafana/grafana:8.3.3
kube-ai-hub/kube-rbac-proxy:v0.14.0
kubesphere/notification-manager-operator:v2.3.0
kubesphere/notification-manager:v2.3.0
kubesphere/notification-tenant-sidecar:v3.2.0
##kubesphere-logging-images
kubesphere/elasticsearch-curator:v5.7.6
kubesphere/opensearch-curator:v0.0.5
kubesphere/elasticsearch-oss:6.8.22
opensearchproject/opensearch:2.6.0
opensearchproject/opensearch-dashboards:2.6.0
kubesphere/fluentbit-operator:v0.14.0
docker:19.03
kubesphere/fluent-bit:v1.9.4
kubesphere/log-sidecar-injector:v1.2.0
elastic/filebeat:6.7.0
kubesphere/kube-events-operator:v0.6.0
kubesphere/kube-events-exporter:v0.6.0
kubesphere/kube-events-ruler:v0.6.0
kubesphere/kube-auditing-operator:v0.2.0
kubesphere/kube-auditing-webhook:v0.2.0
##istio-images
istio/pilot:1.14.6
istio/proxyv2:1.14.6
jaegertracing/jaeger-operator:1.29
jaegertracing/jaeger-agent:1.29
jaegertracing/jaeger-collector:1.29
jaegertracing/jaeger-query:1.29
jaegertracing/jaeger-es-index-cleaner:1.29
kubesphere/kiali-operator:v1.50.1
kubesphere/kiali:v1.50
##example-images
busybox:1.31.1
nginx:1.14-alpine
joosthofman/wget:1.0
nginxdemos/hello:plain-text
wordpress:4.8-apache
mirrorgooglecontainers/hpa-example:latest
fluent/fluentd:v1.4.2-2.0
perl:latest
kubesphere/examples-bookinfo-productpage-v1:1.16.2
kubesphere/examples-bookinfo-reviews-v1:1.16.2
kubesphere/examples-bookinfo-reviews-v2:1.16.2
kubesphere/examples-bookinfo-details-v1:1.16.2
kubesphere/examples-bookinfo-ratings-v1:1.16.3
##weave-scope-images
weaveworks/scope:1.13.0
