Create a DevOps Kubeconfig on AWS

If you have trouble deploying applications into your project when running a pipeline on your AWS cluster with Kube AI Hub installed, it may be caused by the issue of DevOps kubeconfig. This tutorial demonstrates how to create a DevOps kubeconfig on AWS.

Prerequisites

• You have an AWS cluster with Kube AI Hub installed. For more information about how to install Kube AI Hub on AWS, refer to Deploy Kube AI Hub on AWS EKS.
• You have enabled the Kube AI Hub DevOps system.
• You have a project available for deploying applications. This tutorial uses the project kubesphere-sample-dev as an example.

Create a DevOps Kubeconfig

Step 1: Create a Service Account

1. Create a devops-deploy.yaml file on your AWS cluster and enter the following contents.

   ---
   apiVersion: v1
   kind: ServiceAccount
   metadata:
     name: devops-deploy
     namespace: kubesphere-sample-dev
   ---
   apiVersion: rbac.authorization.k8s.io/v1
   kind: Role
   metadata:
     name: devops-deploy-role
     namespace: kubesphere-sample-dev
   rules:
   - apiGroups:
     - "*"
     resources:
     - "*"
     verbs:
     - "*"
   ---
   apiVersion: rbac.authorization.k8s.io/v1
   kind: RoleBinding
   metadata:
     name: devops-deploy-rolebinding
     namespace: kubesphere-sample-dev
   roleRef:
     apiGroup: rbac.authorization.k8s.io
     kind: Role
     name: devops-deploy-role
   subjects:
   - kind: ServiceAccount
     name: devops-deploy
     namespace: kubesphere-sample-dev


2. Run the following command to apply the YAML file.

   kubectl apply -f devops-deploy.yaml


Step 2: Get the Service Account Token

1. Run the following command to get the Service Account token.

   export TOKEN_NAME=$(kubectl -n kubesphere-sample-dev get sa devops-deploy -o jsonpath='{.secrets[0].name}')
   kubectl -n kubesphere-sample-dev get secret "${TOKEN_NAME}" -o jsonpath='{.data.token}' | base64 -d

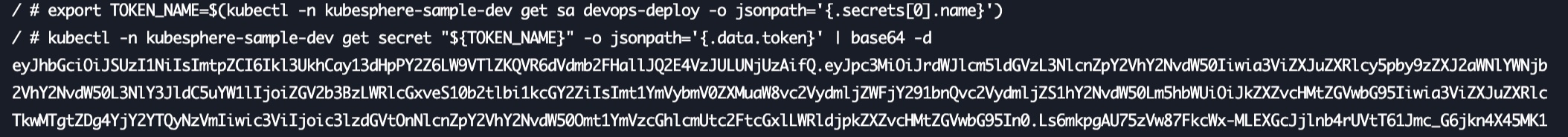

2. The output is similar to the following:



Step 3: Create a DevOps kubeconfig

1. Log in to your Kube AI Hub console of the AWS cluster and go to your DevOps project. Go to Credentials under DevOps Project Settings, and then click Create. You can name this kubeconfig based on your needs.

2. In the Content text box, pay attention to the following contents:

   user:
       client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FUR...
       client-key-data: LS0tLS1CRUdJTiBQUk...


   You have to replace them with the token retrieved in step 2, then click OK to create the kubeconfig.

   user:
     token:eyJhbGciOiJSUzI1NiIsImtpZCI6Ikl3UkhCay13dHpPY2Z6LW9VTlZKQVR6dVdmb2FHallJQ2E4VzJULUNjUzAifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlc3BoZXJlLXNhbXBsZS1kZXYiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlY3JldC5uYW1lIjoiZGV2b3BzLWRlcGxveS10b2tlbi1kcGY2ZiIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50Lm5hbWUiOiJkZXZvcHMtZGVwbG95Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiMjM0ZTI4OTUtMjM3YS00M2Y5LTkwMTgtZDg4YjY2YTQyNzVmIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmVzcGhlcmUtc2FtcGxlLWRldjpkZXZvcHMtZGVwbG95In0.Ls6mkpgAU75zVw87FkcWx-MLEXGcJjlnb4rUVtT61Jmc_G6jkn4X45MK1V_HuLje3JZMFjL80QUl5ljHLiCUPQ7oE5AUZaUCdqZVdDYEhqeFuGQb_7Qlh8-UFVGGg8vrb0HeGiOlS0qq5hzwKc9C1OmsXHS92yhNwz9gIOujZRafnGKIsG6TL2hEVY2xI0vvmseDKmKg5o0TbeaTMVePHvECju9Qz3Z7TUYsr7HAOvCPtGutlPWLqGx5uOHenOdeLn71x5RoS98xguZoxYVollciPKCQwBlZ4zWK2hzsLSNNLb9cZpxtgUVyHE0AB0e86IHRngnnNrzpp1_pDxL5jw/


   Note

   Make sure you use your own token.
